OrangePi AIpro (20T)

Built for AI

12GB / 24GB LPDDR4X

20 TOPS AI computing power

2 × HDMI 2.0 output

2.5G high-speed dual Ethernet ports

Wi-Fi 5 + BT 4.2, BLE

3 × USB 3.0, USB Type-C 3.0

Supports M.2 2280 SATA / NVMe SSD

External 32GB / 64GB / 256GB eMMC module

USB Type-C power supply

20 TOPS of AI compute on the board

A 4-core 64-bit processor sits alongside a dedicated AI processor — one DaVinci V300 AI core at 1.224GHz and four TAISHAN V200M cores at 1.6GHz — putting CPU, inference, ISP and graphics output on a single board. Object recognition, image classification and similar accelerated workloads run locally at 20 TOPS.

Available with 24GB of LPDDR4X

12GB or 24GB at 4266Mbps. The larger configuration is what makes this board different from the 8T: complex multi-process applications, larger models and bigger frame buffers all stay resident instead of thrashing.

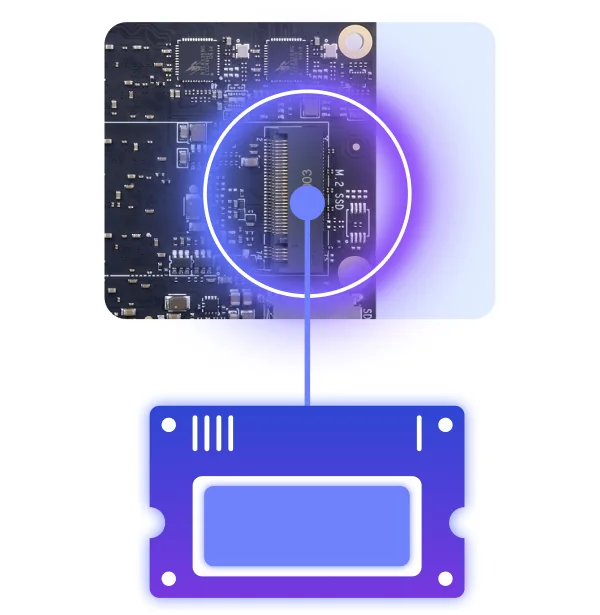

M.2 2280 SATA or NVMe SSD

The onboard M.2 slot takes a 2280 SATA or NVMe drive for fast, high-capacity local storage — datasets, weights and logs off the microSD card. An eMMC module of 32GB, 64GB or 256GB can be fitted alongside it.

2.5G high-speed dual Ethernet ports

Two 2.5G Ethernet ports on separate PCIe lanes. That is the interface to reach for when the board is ingesting camera streams on one link and serving results on the other, or sitting inline as an edge gateway.

Multi-channel output, supporting multi-screen heterodyne display

Dual HDMI video output at 4K, one MIPI DSI 4-lane video output and two MIPI 4-lane camera inputs. Each display can show something different rather than mirroring, so one board drives a video wall, a control panel and an operator screen at once.

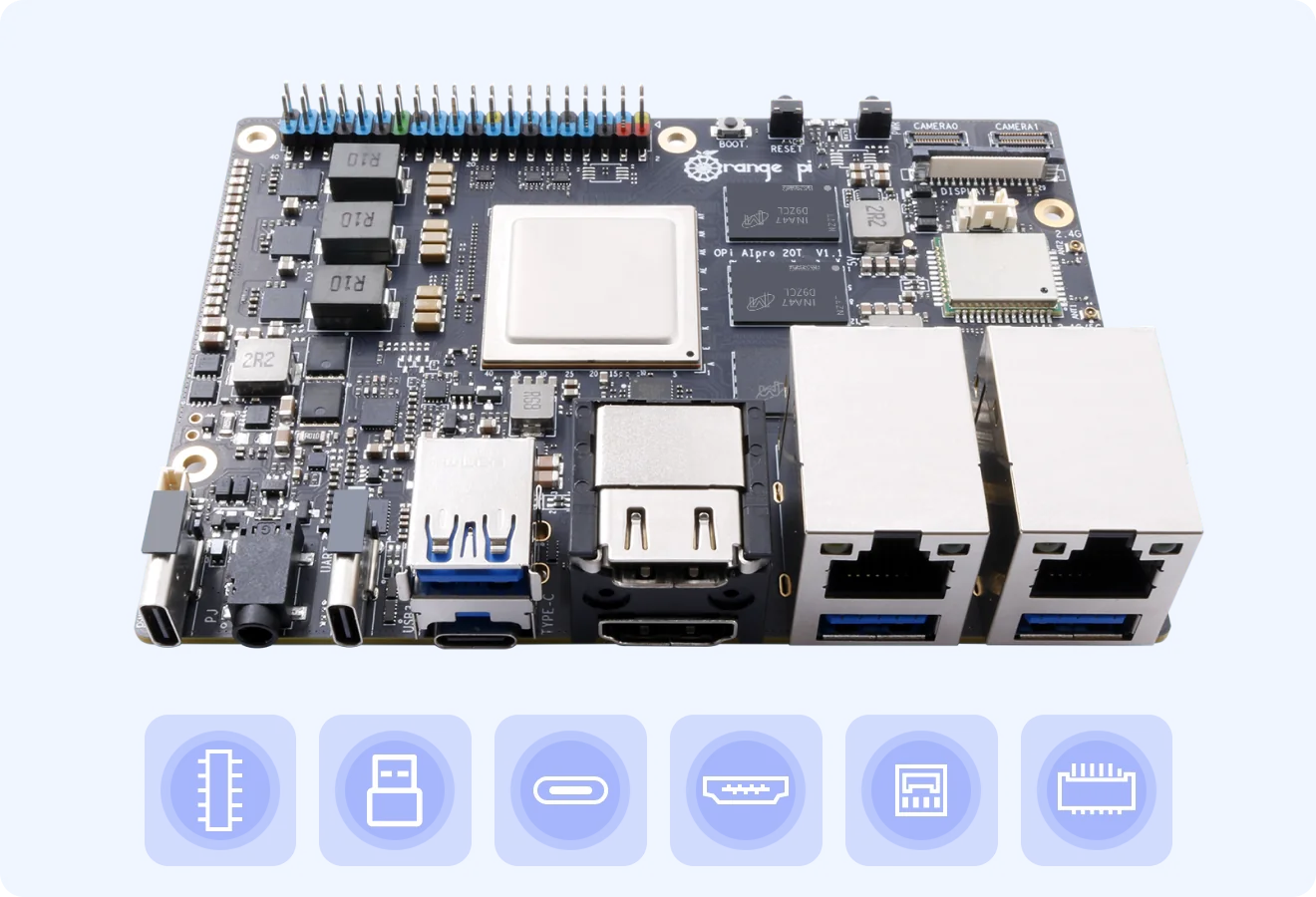

Rich interfaces for easy expansion

MIPI DSI and dual MIPI CSI, three USB 3.0 ports and Type-C 3.0, dual HDMI 2.0, dual 2.5G Ethernet, an M.2 slot for a 2280 SATA or NVMe SSD, a MicroSD slot, a 40-pin header and a reserved battery connector.

Wide range of application scenarios

AI teaching and training, algorithm verification, intelligent carts and robotic arms, edge computing, drones, cloud computing, AR and VR, intelligent security, smart home and intelligent transport. In Pakistan it is the board we recommend when a lab has outgrown the 8T.

About the board

OrangePi AIpro (20T) is powered by a 4-core 64-bit processor plus an AI processor with integrated graphics, delivering 20 TOPS of AI compute. It carries 12GB or 24GB of LPDDR4X, accepts an external eMMC module of 32GB, 64GB or 256GB, and drives dual 4K output.

The interface set is broad: two HDMI outputs, a 40-pin GPIO header, a Type-C power port, an M.2 slot for a 2280 SATA or NVMe SSD, a MicroSD slot, 2.5G high-speed LAN, three USB 3.0 ports, one USB 3.0 Type-C, a Type-C for serial print debugging, two MIPI cameras, one MIPI screen output and a reserved battery connector.

Ubuntu and openEuler are both supported, covering most AI prototyping and inference development. We hold the board in local stock in Pakistan with warranty and setup support.

OrangePi AIpro (20T) pin definition

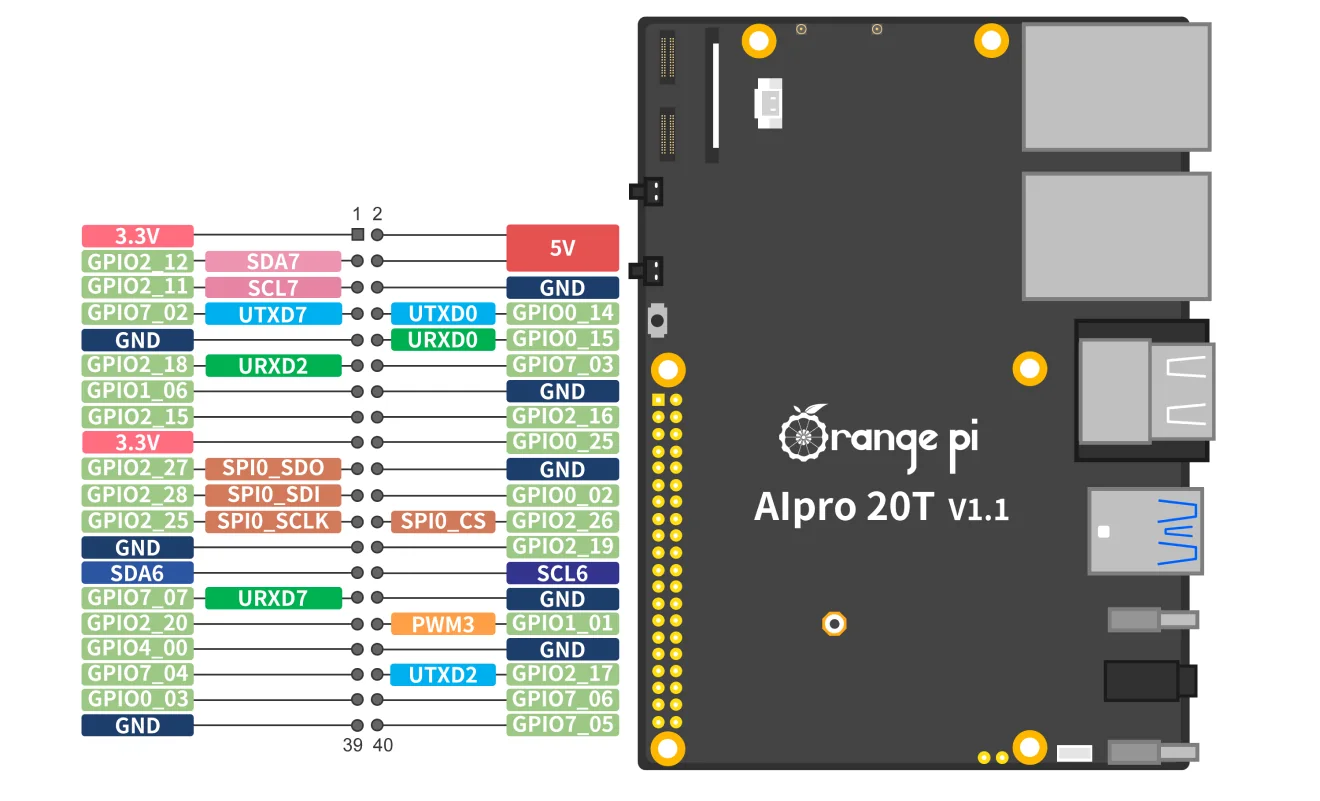

OrangePi AIpro 20T 40-pin header pin definition

The 40-pin expansion header carries GPIO, UART, I2C, SPI, I2S and PWM. Full pin tables ship with the datasheet — download it from the 20T download page.

Product display

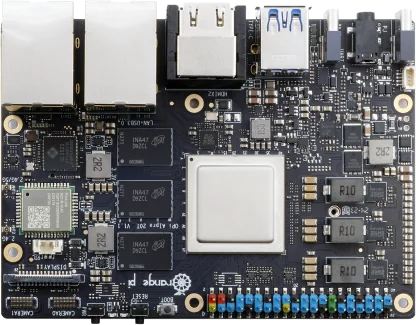

Top view

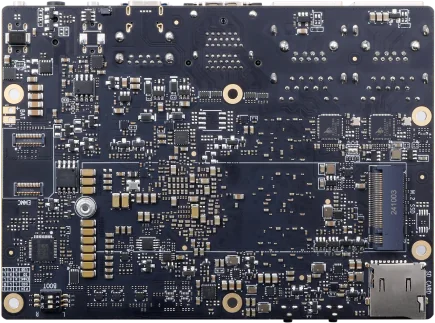

Bottom view

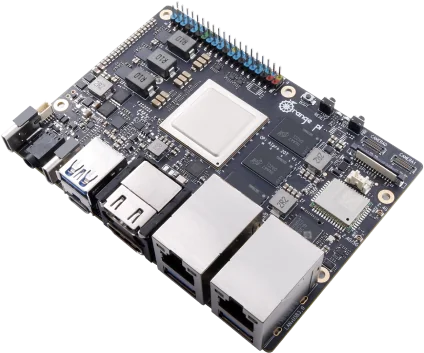

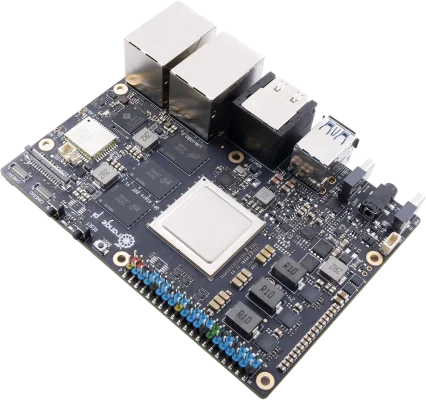

OrangePi AIpro 20T — 45° angle — 45° angle

Hardware specification

CPU	4-core 64-bit processor + AI processor 1 × DaVinci V300 AI core at 1.224GHz 4 × TAISHAN V200M processor cores at 1.6GHz
GPU	Integrated graphics processor
AI computing power	20 TOPS
RAM	LPDDR4X: 12GB / 24GB (optional), rate 4266Mbps
Storage	• Supports eMMC module: 32GB / 64GB / 256GB • SATA / NVMe SSD (M.2 interface 2280) • SPI flash: 32MB • MicroSD slot
Wi-Fi + Bluetooth	Wi-Fi 5 dual-band + BT 4.2, BLE
Ethernet transceiver	Dual 2.5G Ethernet
Display	• 2 × HDMI TX 2.0 outputs, up to 4K@60FPS • 1 × MIPI DSI 4-lane output
Camera	2 × MIPI CSI 4-lane camera interface
USB	• 3 × USB 3.0 HOST • 1 × USB Type-C 3.0 HOST / Device (USB 2.0 compatible) • 1 × Type-C serial port printing function
Audio	3.5mm headphone jack audio in / out
Button	1 × power button, 1 × reset button, 1 × start toggle button, 1 × BOOT button
40pin	40-pin function expansion interface supporting GPIO, UART, I2C, SPI and PWM
Fan	1 × fan connector
Reserved ports	2-pin battery connector
Power supply	Type-C PD 20V IN, standard 65W
Supported OS	Ubuntu, openEuler
Product size	115.23mm × 83.26mm × 1.6mm
Weight	120.5g

Note

Product batches and supply change in real time, so the specification above may be revised. Please confirm against the actual product on the day of sale.
