OrangePi 6 Plus

The ultimate development board for on-device AI in the era of large models

12-core 64-bit processor + NPU

16GB / 32GB / 64GB LPDDR5

45 TOPS combined AI compute (CPU + NPU + GPU)

2 × NVMe SSD (M.2 KEY-M 2280)

2 × 5G Ethernet

2 × USB 3.0 HOST

2 × USB 2.0

Debian, Ubuntu, Android, Windows, ROS2

Powerful computing performance

A 12-core 64-bit processor sits alongside an NPU. The multi-core design handles multitasking efficiently, taking complex compute and everyday desktop applications in its stride.

45 TOPS of AI compute (CPU + NPU + GPU)

Scheduling the CPU, GPU and NPU together reaches a combined 45 TOPS, which lifts both AI development and deployment. It runs a wide range of mainstream models and covers generative AI on the edge — chat assistants, AI-assisted programming and similar.

Exceptional graphics processing

The integrated graphics processor supports 8K video decoding and hardware-accelerated ray tracing, so graphics-intensive work — games, industrial design software, desktop 3D — performs well rather than merely running.

LPDDR5 memory and two NVMe M.2 2280 slots

Rich memory and storage expansion

128-bit LPDDR5 at 16GB, 32GB or 64GB, with two M.2 KEY-M 2280 slots for NVMe SSDs alongside SPI flash and a TF slot — fast reads and writes with plenty of capacity behind them.

Rich interface design

Display output over HDMI, DisplayPort, Type-C DP and eDP, with 4K at 120Hz available on DP. Add dual 5G Ethernet, an M.2 KEY-E slot for a Wi-Fi module and several USB ports, and most peripherals connect without an adapter.

Excellent software compatibility

Debian, Ubuntu, Android, Windows and ROS2 are all supported, with full technical documentation behind them. That breadth is what lets one board serve a robotics group, a desktop workstation and an Android appliance.

About the board

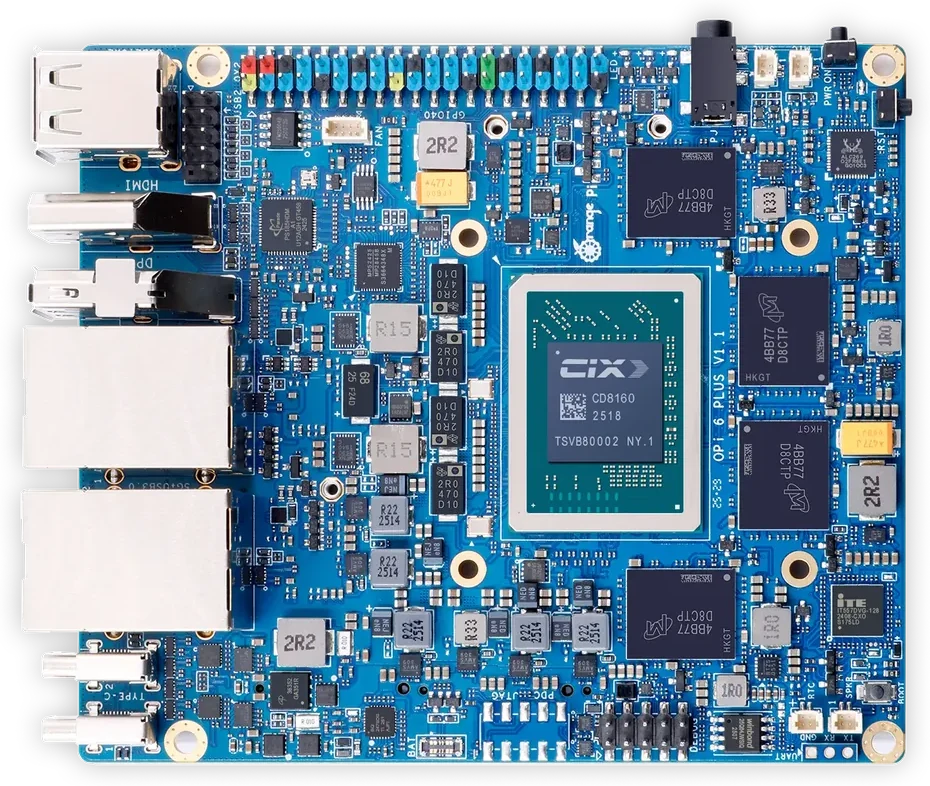

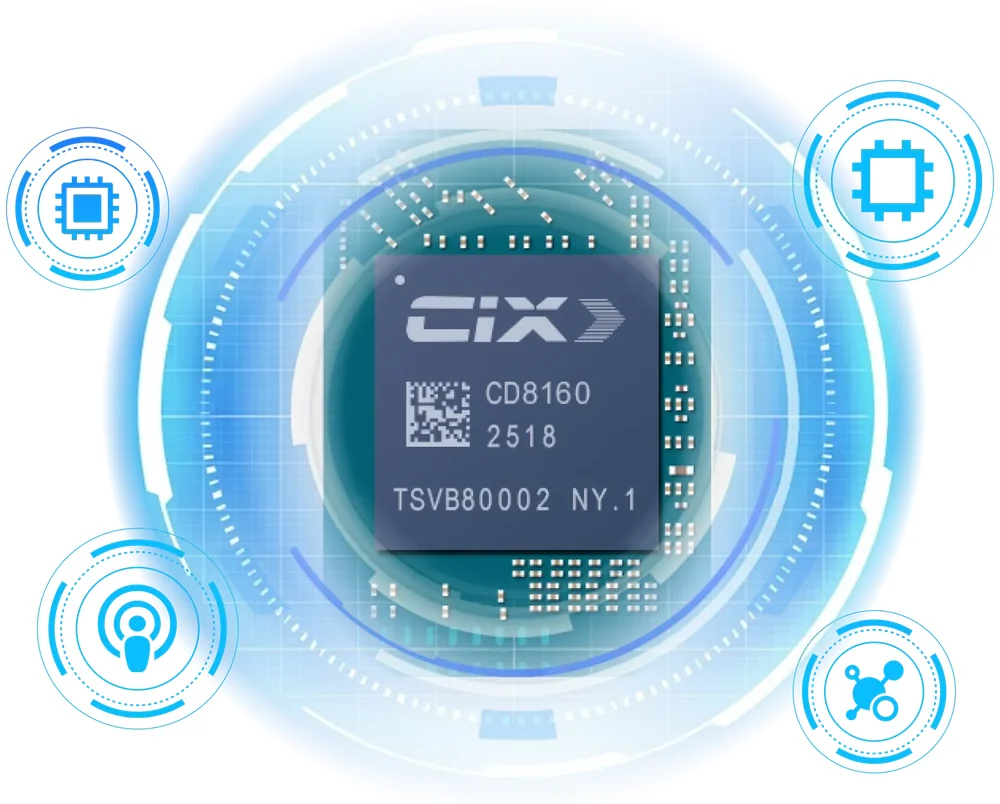

Orange Pi 6 Plus is built on the CIX CD8180 / CD8160 SoC, with a 12-core 64-bit processor plus an NPU and an integrated graphics processor. It carries 16GB, 32GB or 64GB of LPDDR5 and provides two M.2 KEY-M 2280 slots for NVMe SSDs, along with SPI flash and a TF slot, so fast reads and writes and high-capacity storage are both covered. Its 45 TOPS of combined compute (CPU + NPU + GPU) supports a range of on-device large-model applications, and the graphics engine and acceleration algorithms carry desktop 3D work such as games and industrial design software.

The interface set is broad: USB 3.0 and USB 2.0, HDMI, dual 5G Ethernet, MIPI camera inputs, a TF slot, Type-C power supply, a 40-pin expansion connector and a fan connector — enough to attach most peripherals directly.

With that much compute behind it, the board suits smart offices, edge computing, smart security, industrial automation control, smart retail, home servers, AI development workstations and high-performance personal computing.

As an open-source board it gives developers room to work — freedom to go deep, explore and build. We hold it in local stock in Pakistan with warranty and setup support.

OrangePi 6 Plus pin definition

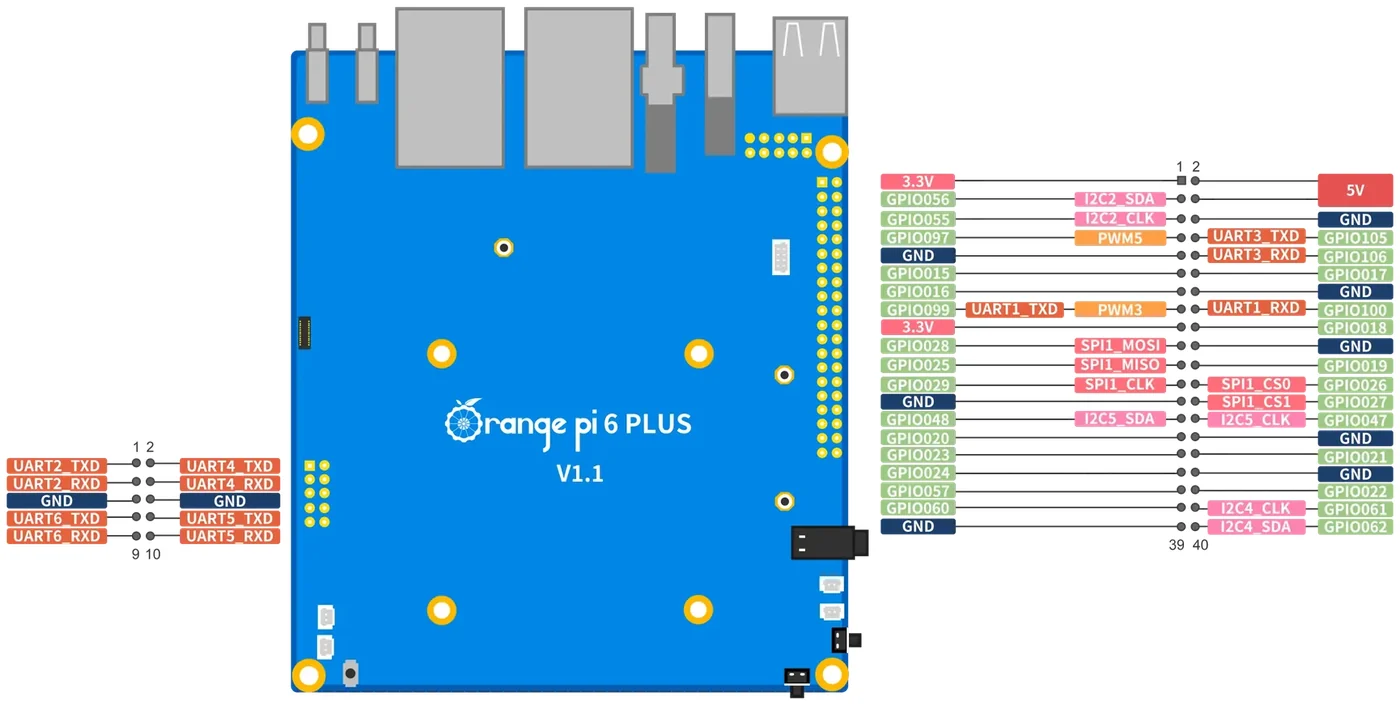

Orange Pi 6 Plus 40-pin header pin definition

The 40-pin function expansion header carries GPIO, UART, I2C, SPI and PWM. The full pin table ships with the board manual — download it from the 6 Plus download page.

Product display

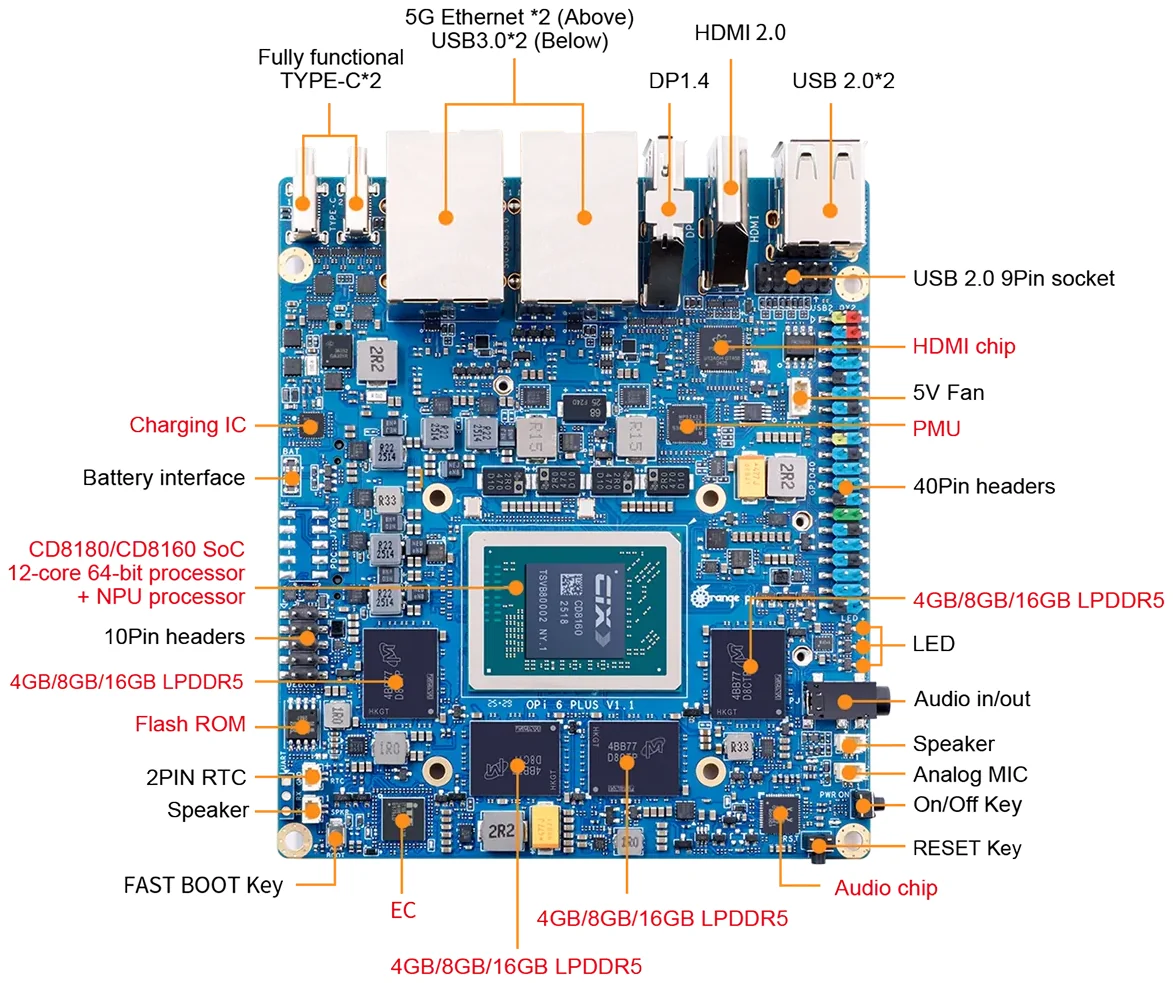

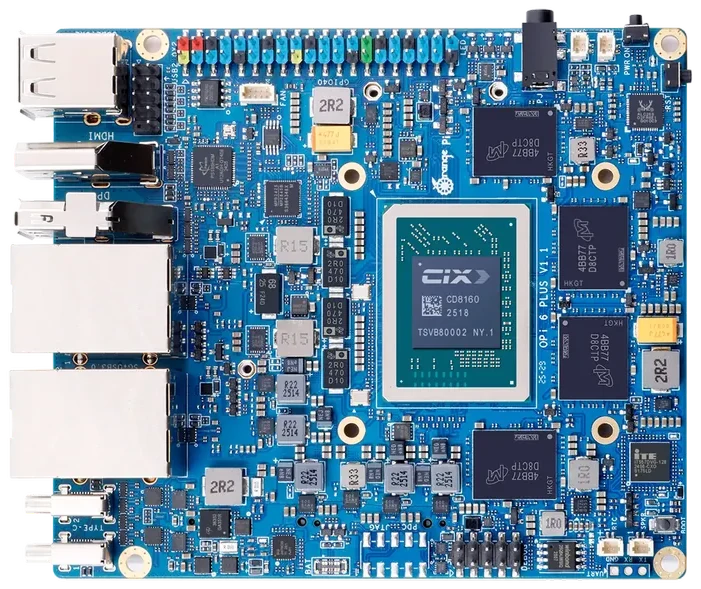

Top view

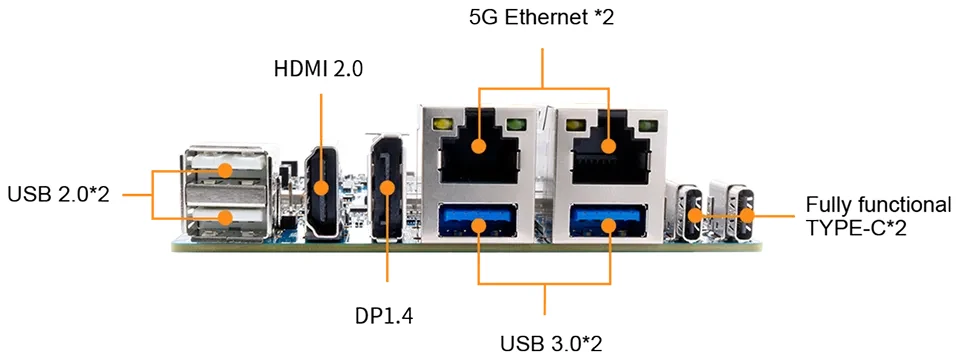

Orange Pi 6 Plus rear interfaces — USB 2.0, HDMI 2.0, DP 1.4, dual 5G Ethernet, USB 3.0 and Type-C

Side view

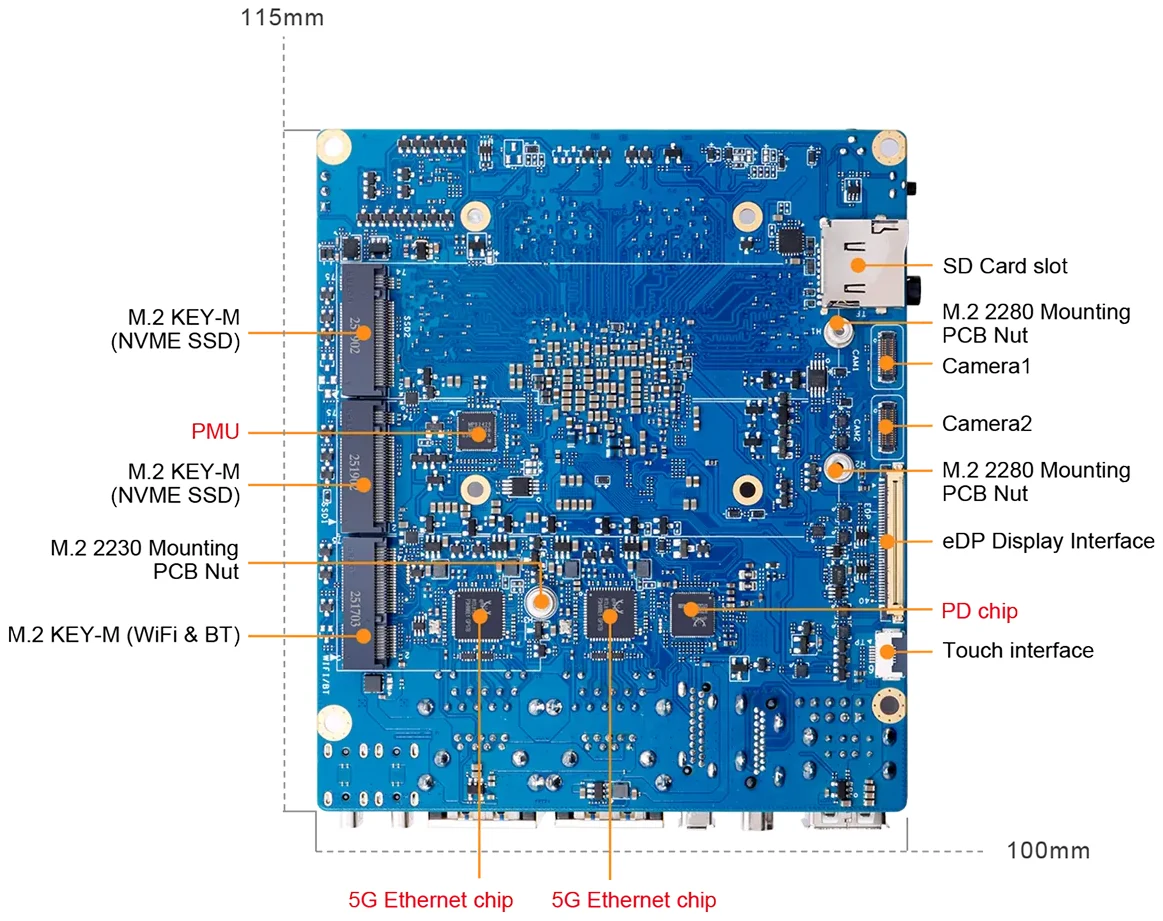

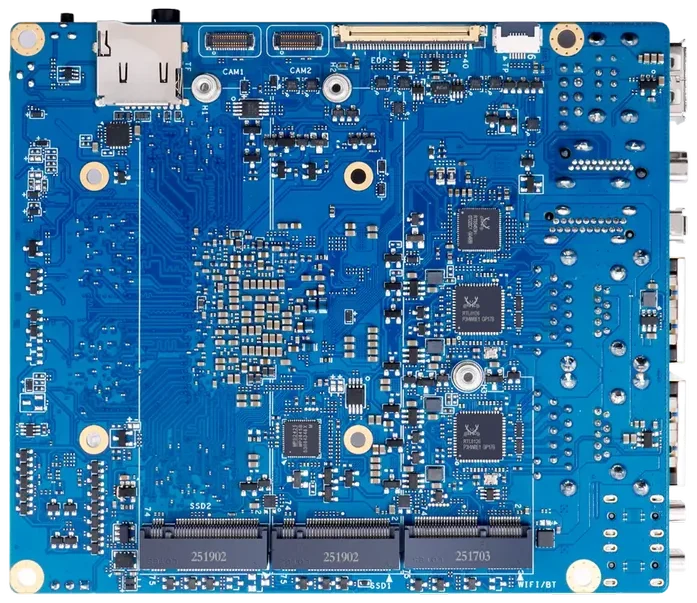

Bottom view

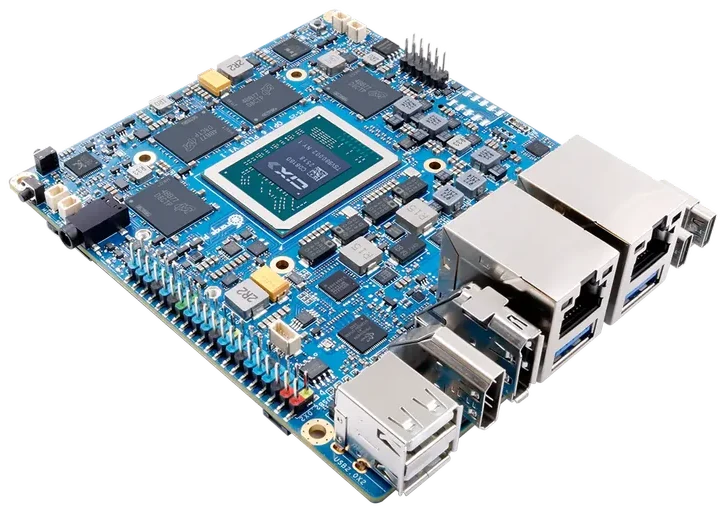

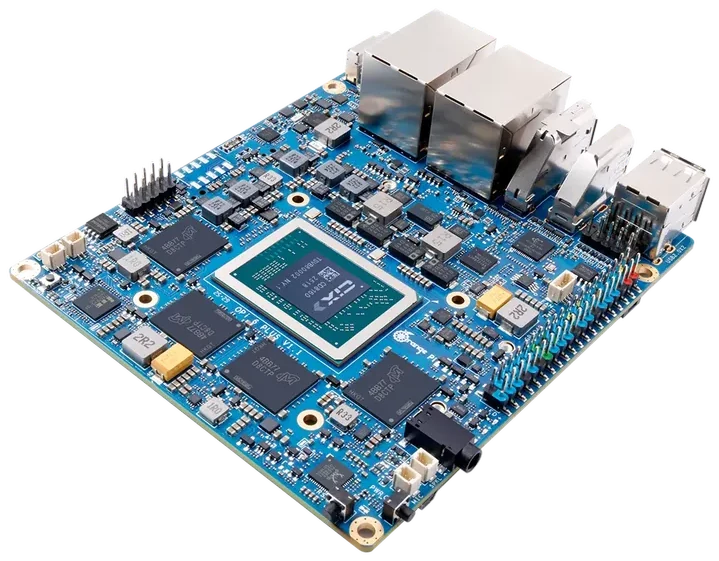

Orange Pi 6 Plus — 45° angle — 45° angle

Hardware parameters

CPU	12-core 64-bit processor (CIX CD8180 / CD8160)
NPU	28.8 TOPS
GPU	Integrated graphics processor
Combined computing power	45 TOPS (CPU + NPU + GPU)
RAM	LPDDR5: 128-bit × 32; 16GB / 32GB / 64GB
Storage expansion	• SPI flash: 64Mbit • 2 × NVMe SSD (PCIe 4-lane, M.2 KEY-M 2280) • TF slot
Wi-Fi module	M.2 KEY-E socket
PCIe Ethernet	2 × 5G Ethernet
USB	• 2 × USB 3.0 HOST • 2 × USB 2.0 • Reserved USB 2.0 9-pin socket • 2 × USB full-function Type-C 3.0 HOST
Camera interface	2 × 4-lane MIPI CSI camera interface
Display interface	• 1 × DP 1.4, 4K@120Hz • 2 × Type-C DP • 1 × HDMI 2.0 (4K@60Hz, bridge chip PS185) • 1 × eDP, 4K@60Hz
Audio	3.5mm headphone jack audio in / out, 2 × speakers, 1 × analogue MIC
Type-C power supply	2 × Type-C PD 20V IN, standard 100W
Expansion interface	40-pin function expansion interface supporting GPIO, UART, I2C, SPI and PWM
Indicator lights	Power-on indicator, system indicator, battery charging indicator
Buttons	1 × power button, 1 × BOOT button, 1 × RESET button
Fan interface	1 × fan connector with PWM control
Reserved interfaces	Board-to-board battery connector; 2-pin RTC connector
Power adapter	Type-C PD 20V input, standard 100W
Supported OS	OpenHarmony, Debian, Ubuntu, Android, Windows, ROS 2
Product size	115 × 100mm
Weight	132g

Notes

1. Product batches and supply change in real time, so the specification above may be revised. Please confirm against the actual product on the day of sale.

2. Memory and storage configuration is selected at order time. Tell us which you need and we will confirm availability and lead time — contact us.
