About the board

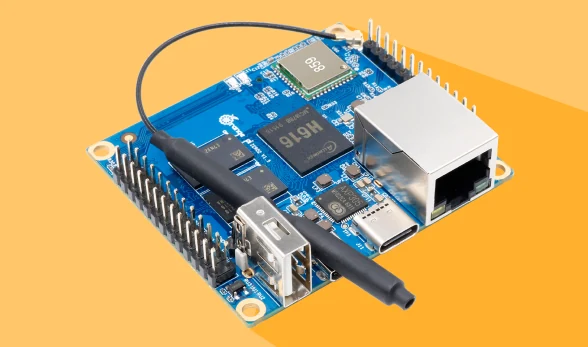

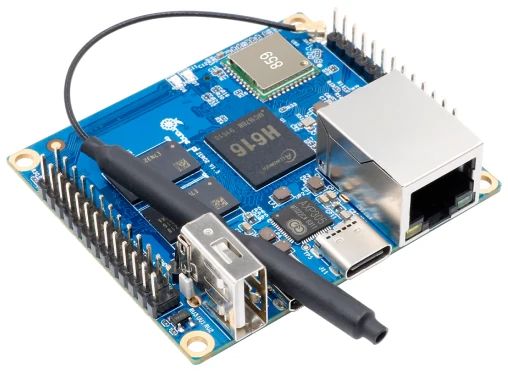

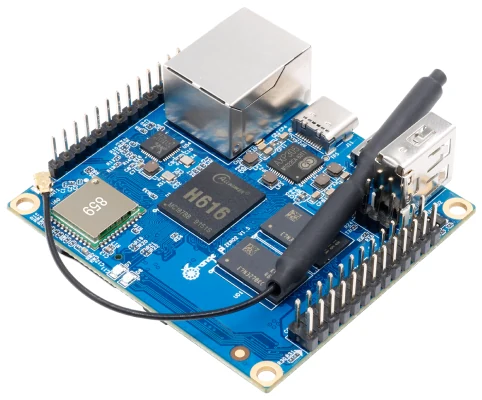

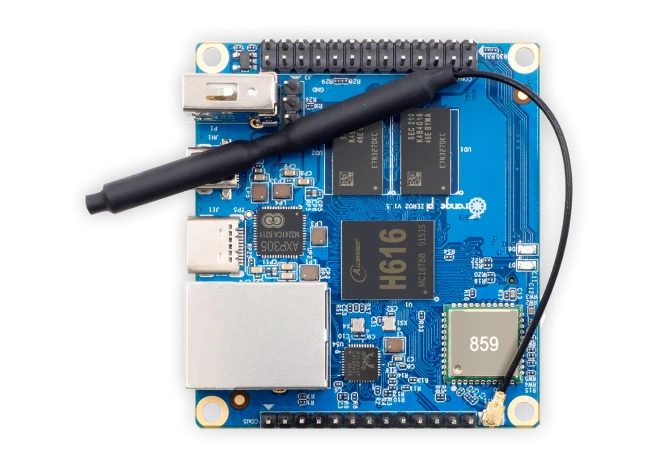

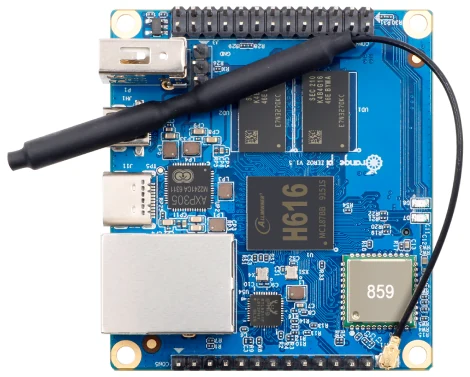

Orange Pi Zero 2 uses the Allwinner H616 SoC — a 64-bit quad-core Cortex-A53 at 1.5GHz with a Mali G31 MP2 GPU supporting OpenGL ES 3.2 and OpenCL 2.0. It carries 512MB or 1GB of DDR3 shared with the GPU, a TF card slot and 2MB of SPI flash.

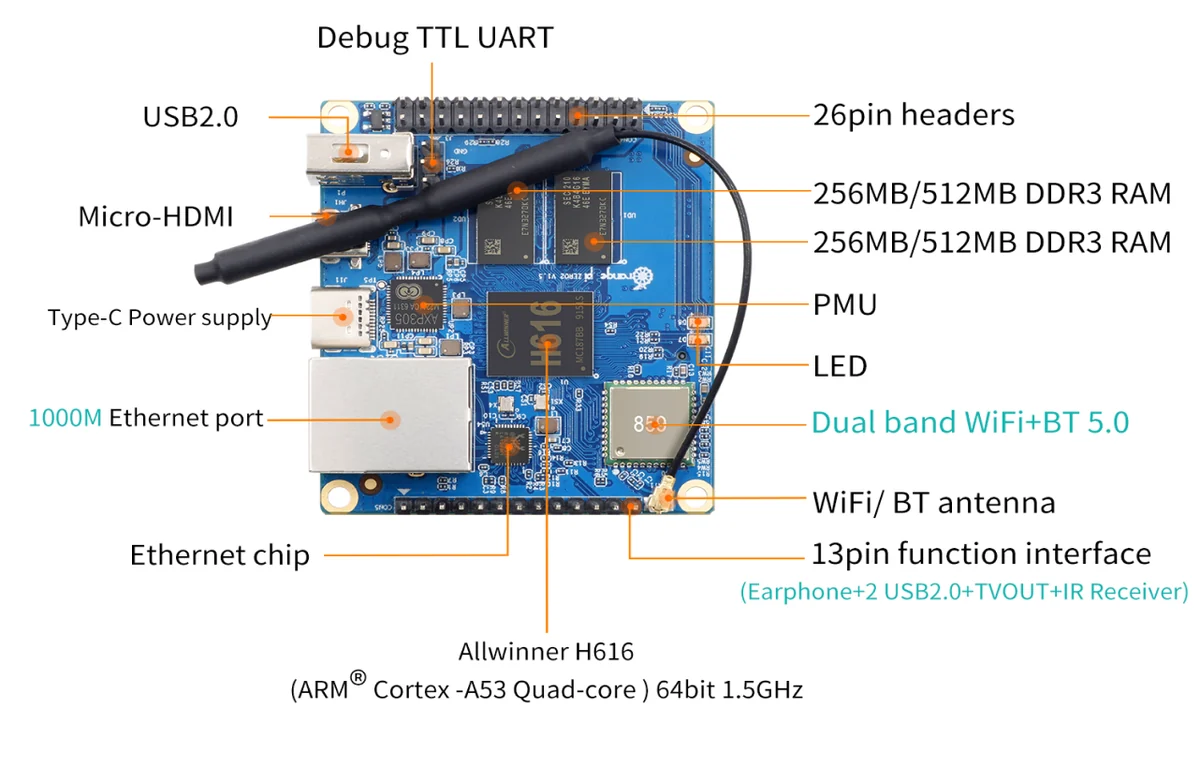

Connectivity is the point of this board: Gigabit Ethernet, an onboard dual-band module covering 802.11 a/b/g/n/ac and Bluetooth 5.0, Micro HDMI 2.0a to 4K@60fps, and three USB 2.0 hosts (two of them through the 13-pin adapter board). A 26-pin header carries I2C, SPI, UART and GPIO, and the 13-pin header adds TV-out, audio, infrared and more GPIO.

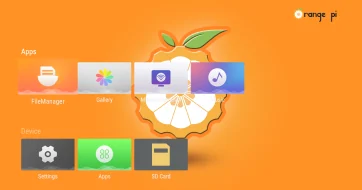

Android 10, Ubuntu and Debian are all supported, along with a wide range of community images. We hold the 1GB version in local stock in Pakistan with warranty and setup support.

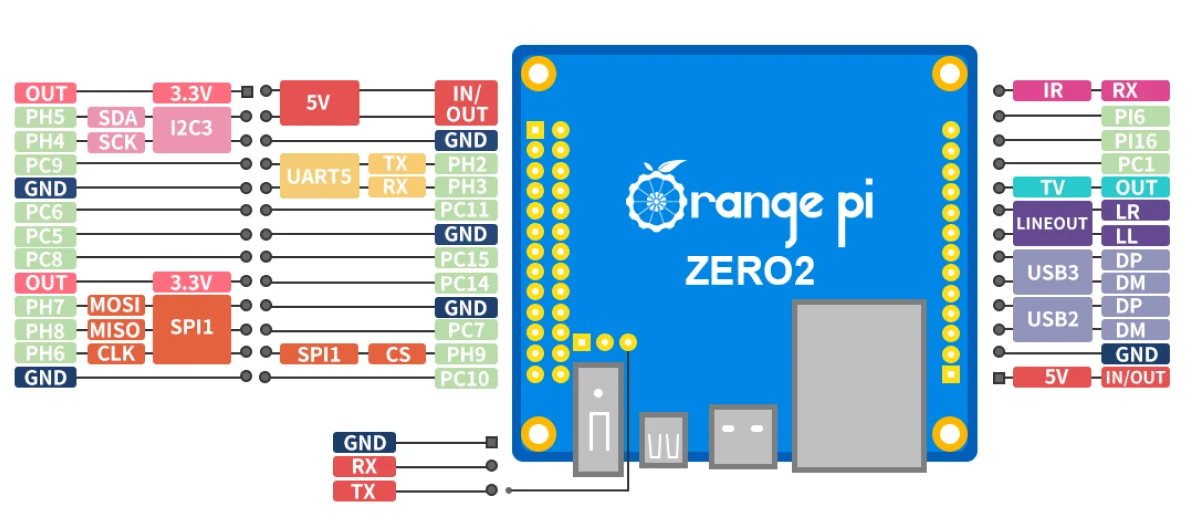

The 26-pin header carries I2C, SPI, UART and GPIO; the 13-pin header adds two USB hosts, infrared, TV-out, audio and three more GPIO.
Hardware specification
| CPU | Allwinner H616 64-bit high-performance quad-core Cortex-A53 processor at 1.5GHz |
| GPU | • Mali G31 MP2 • Supports OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0 |
| Video decoding | • H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps • VP9 Profile 2 decoder up to 4K@60fps • AVS2 JiZhun 10-bit decoder up to 4K@60fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps |
| Video encoding | • H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps • JPEG snapshot performance of 1080p@60fps |
| Memory (SDRAM) | 512MB / 1GB DDR3 (shared with GPU) |
| Onboard storage | • TF card slot • 2MB SPI flash |
| Onboard Ethernet | Supports 10 / 100M / 1000M Ethernet |
| Onboard Wi-Fi + Bluetooth | • 859 chip • Supports IEEE 802.11 a/b/g/n/ac • Supports BT 5.0 |
| Video output | • Micro HDMI 2.0a up to 4K@60fps • TV CVBS output, supports PAL / NTSC (via 13-pin adapter) |
| Audio output | • Micro HDMI output • 3.5mm audio jack (via 13-pin adapter) |
| Power supply | USB Type-C port, 5V / 3A input |
| USB 2.0 ports | 3 × USB 2.0 HOST (two of them via the 13-pin adapter board) |
| Low-level peripherals | • 26-pin connector with I2C, SPI, UART and multiple GPIO ports • 13-pin connector with 2 × USB host, IR pin, TV-out, audio (without MIC) and 3 GPIO ports |
| Debugging serial port | UART-TX, UART-RX and GND |
| LED lights | Power indicator light and status indicator light |
| Infrared reception | Supports infrared remote control (via 13-pin adapter board) |
| Supported operating systems | Operating systems such as Android 10, Ubuntu and Debian |
Appearance specification

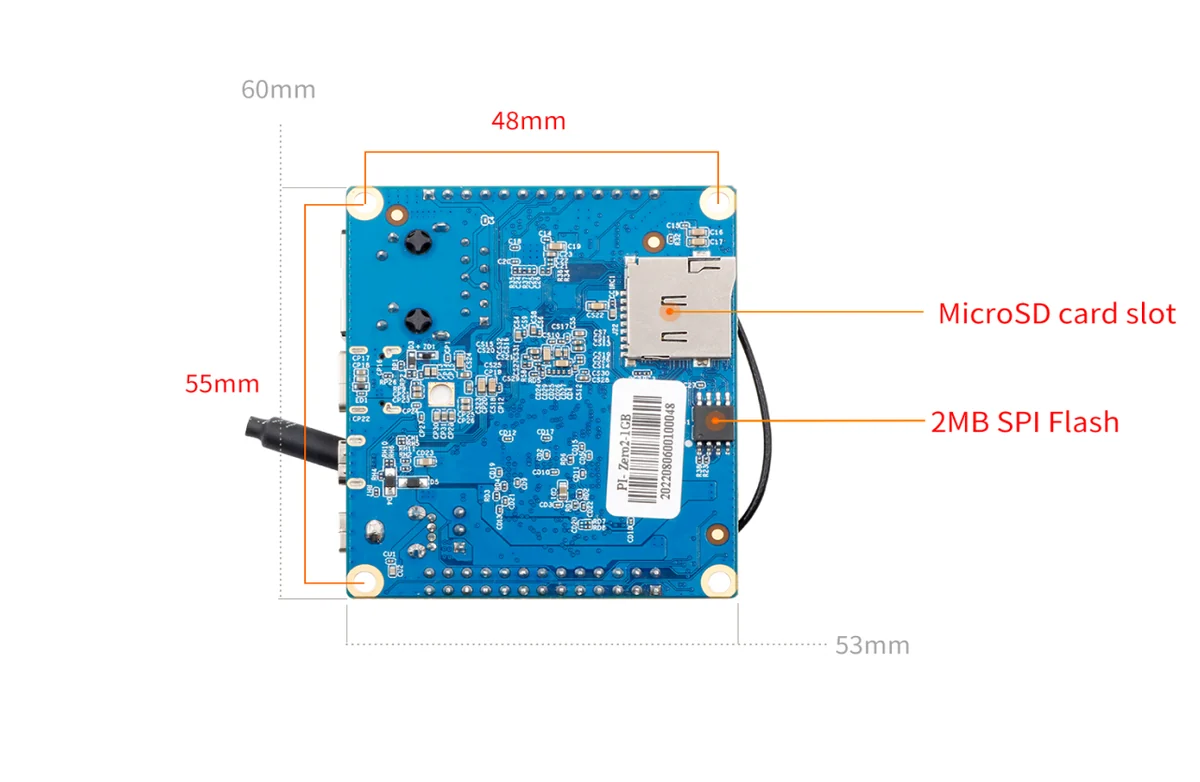

| Product dimensions | 53mm × 60mm |
| Weight | 26g |
Product batches and supply change in real time, so the specification may be revised. Please confirm against the actual product on the day of sale.
